Flat Panel Antenna EM-6173

Features:

  • 100MHz-27GHz.
  • Small footprint and extremely light weight.
  • One port covers wide band frequency range.
  • Omni-directional response in free space.
  • Compatible with any 50-ohm instrument.
  • Recessed mount to wall or any surface.
  • Connectors are hidden from frontal view to improve appearance and minimize the possibility of
    tampering.

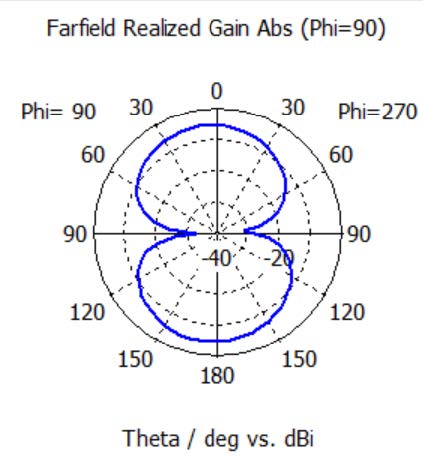

Figure 1: 1 GHz radiation plot
Figure 2: 10 GHz radiation plot
Figure 3: 20GHz radiation pattern

Add to Quote
Category:

Electrical

Frequency Range: 100 MHz – 27GHz
Impedance: 50 Ohms, nominal
Max.* Gain: -21 dBi typical @ 100 MHz (simulated)
-5 dBi typical @ 400 MHz (measured)
>0 dBi typical 900 MHz to 27 GHz (measured)

Connectors: Type SMA female

Continuous Power: 5 W

*Max Gain Determined from the maximum antenna response as antennas is scanned through all
azimuth and elevation angles.

Mechanical

Length: 6.5”
Width: 6.5”
Thickness: 0.7”
Weight: 114 grams
