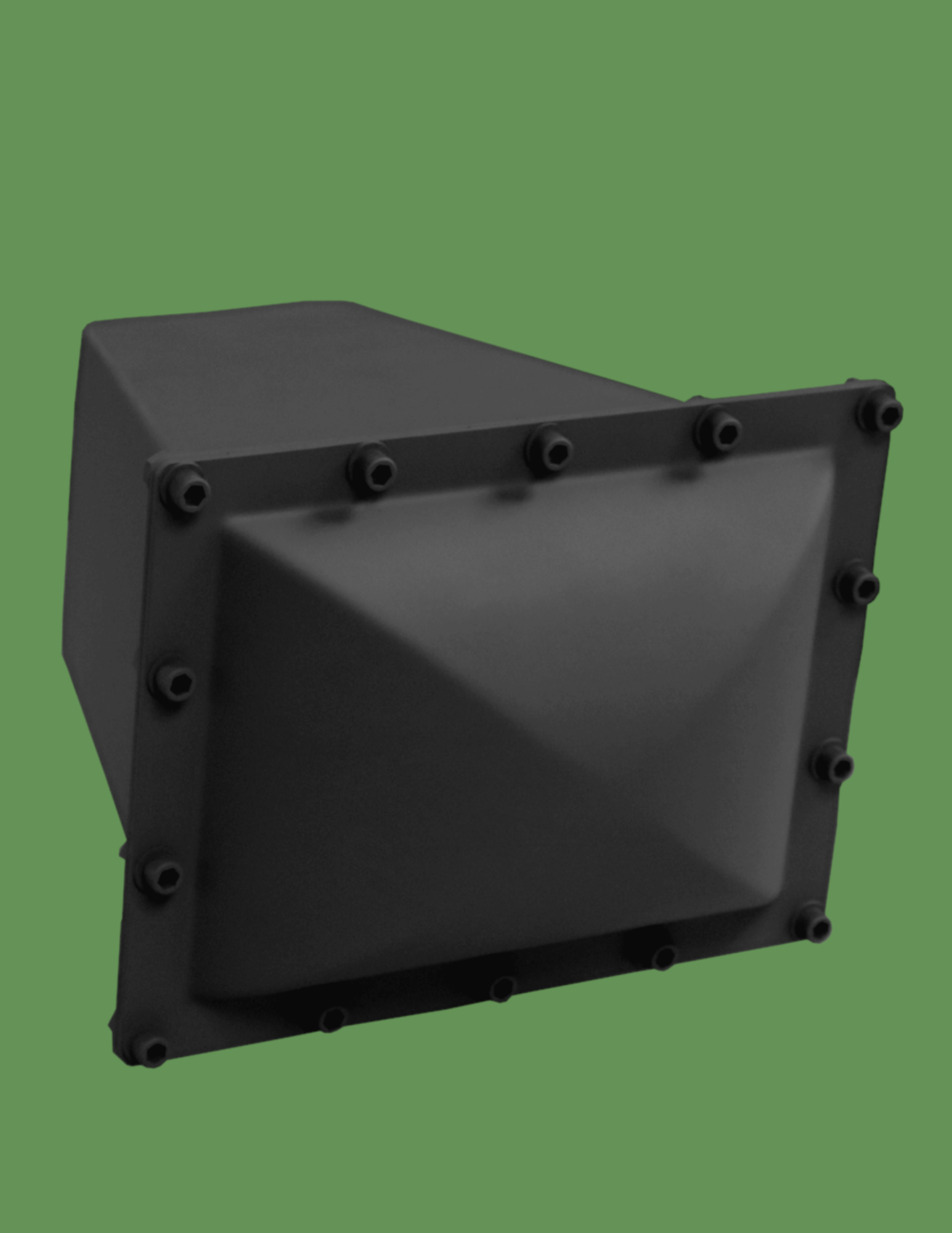

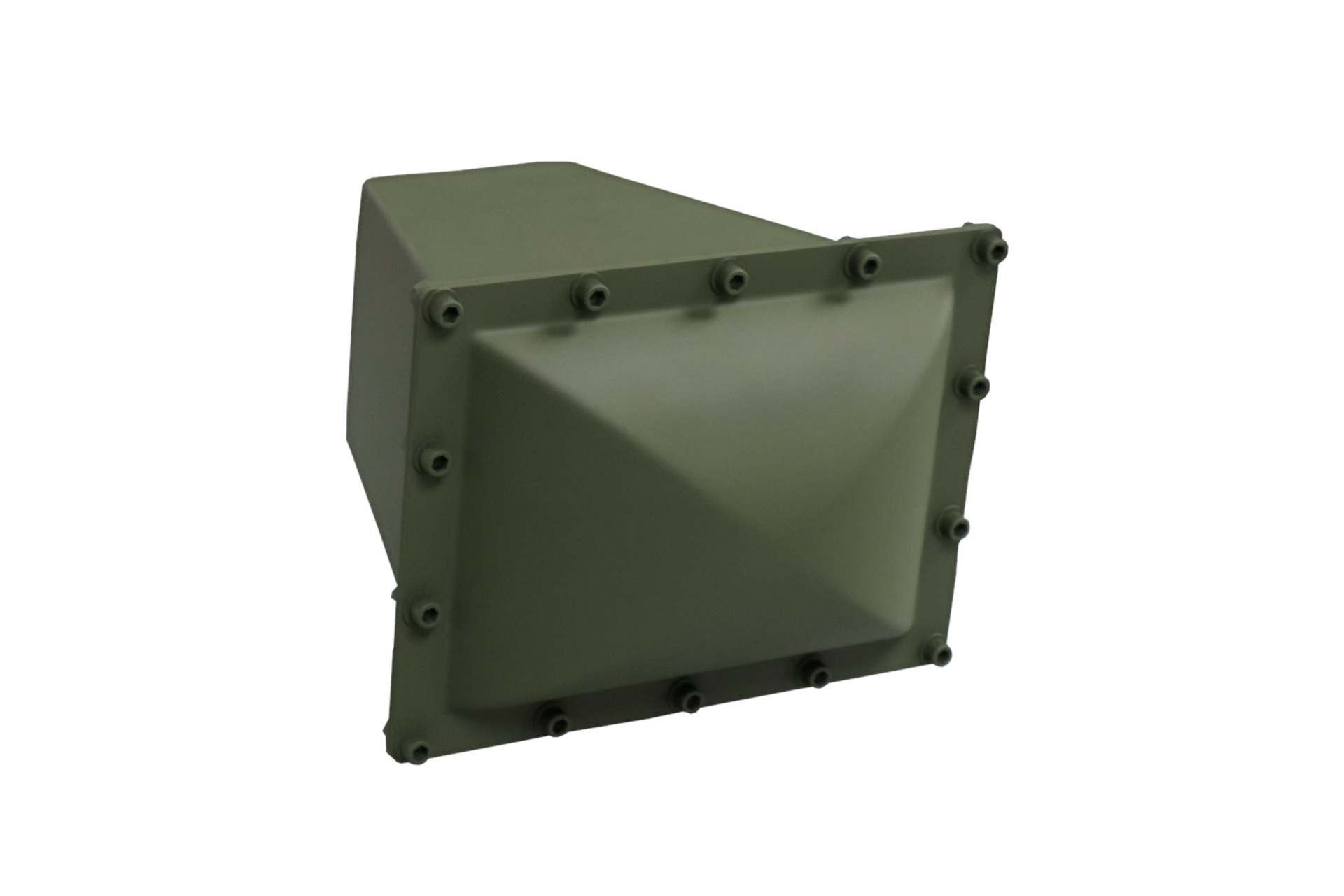

The EM-7102R is a high-performance, Dual Ridged Horn Antenna designed to cover the L, S, C, X, and Ku bands across the extensive 700MHz-18GHz frequency range. The EM-7102R features a sealed, weather-resistant radome allowing for uninterrupted use in harsh outdoor environments. The EM-7102 is an updated design featuring the maximum gain of the antenna along its boresight without nulls or lobe-splitting. The EM-7102 also features a consistent beamwidth with a low VSWR for improved measurement quality.
Frequency Range: 700MHz – 18GHz
*Calibration Not Included with EM-7102R
Polarization: Linear, Vertical
VSWR: 2:1 Average, 3.5:1 Max above 1GHz
3dB Beamwidth: 80° – 20° Typical Azimuth
80° – 20° Typical Elevation
Impedance: 50Ω, Nominal
Gain: 10-13 dBi Typical > 3GHz
6dBi @ 1000MHz
0.1dBi @ 750MHz
Max* Power: 100W CW
300W Peak
Connector: Type ‘N’ (EM-7102R | 700MHz-18GHz)
Dimensions:
Height: 25.4 cm (10.0 in.)
Width: 34.3 cm (13.5 in.)
Depth: 38.1 cm (15.0 in.)
Weight: kg (lbs.)
Mounting Options Available:

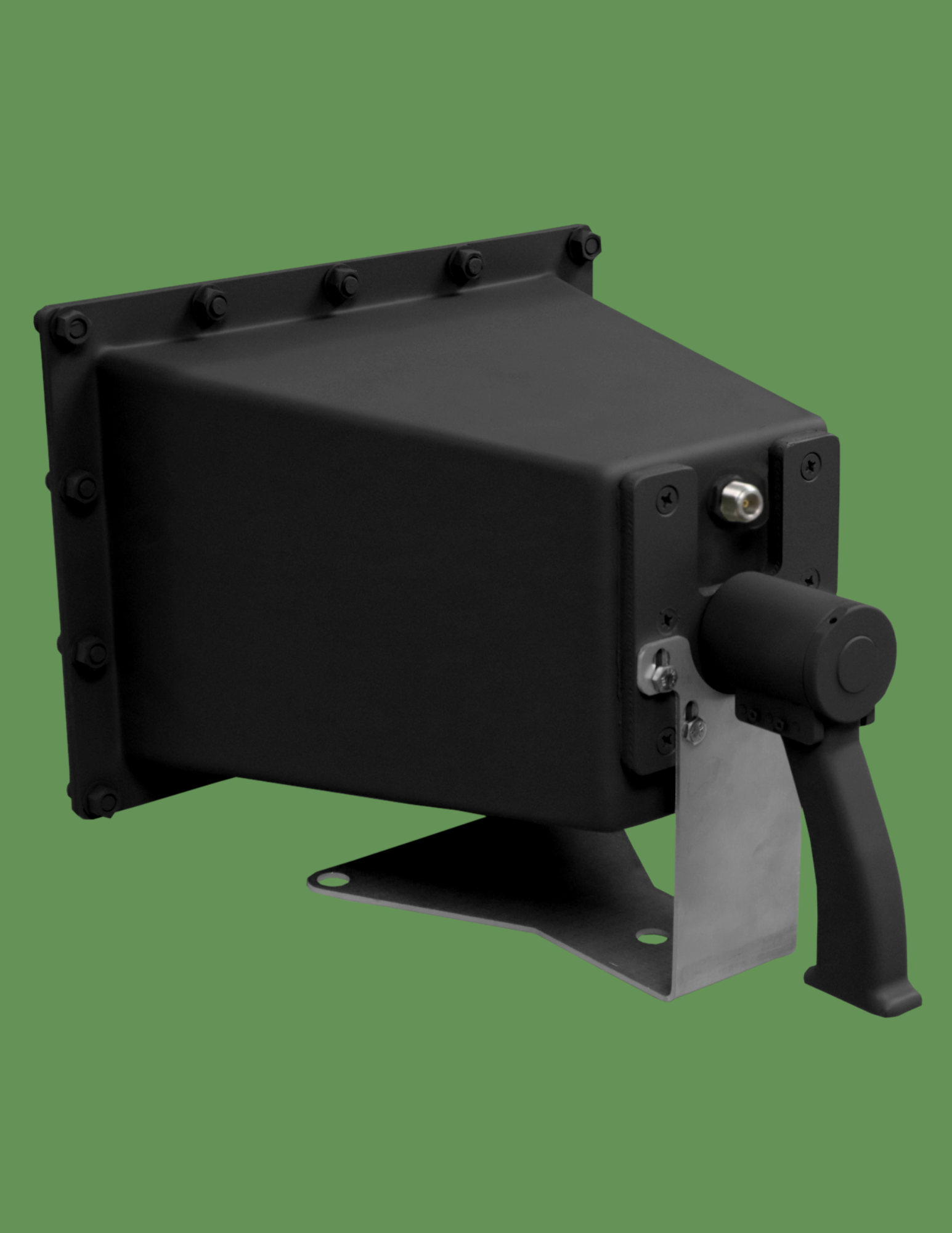

Radome with tripod mount (EM-7102R)
Handheld grip
Color Options:
• Black
• Custom Paint Available
