Electrical
Frequency Range: 600Mhz – 18Ghz
Polarization: Linear, Vertical
VSWR: < 2:1 Typical
3:1 Max
Radiation Pattern: Omnidirectional
Impedance: 50Ω, Nominal
Gain: 2dBi Nominal
Connector: Type ‘N’

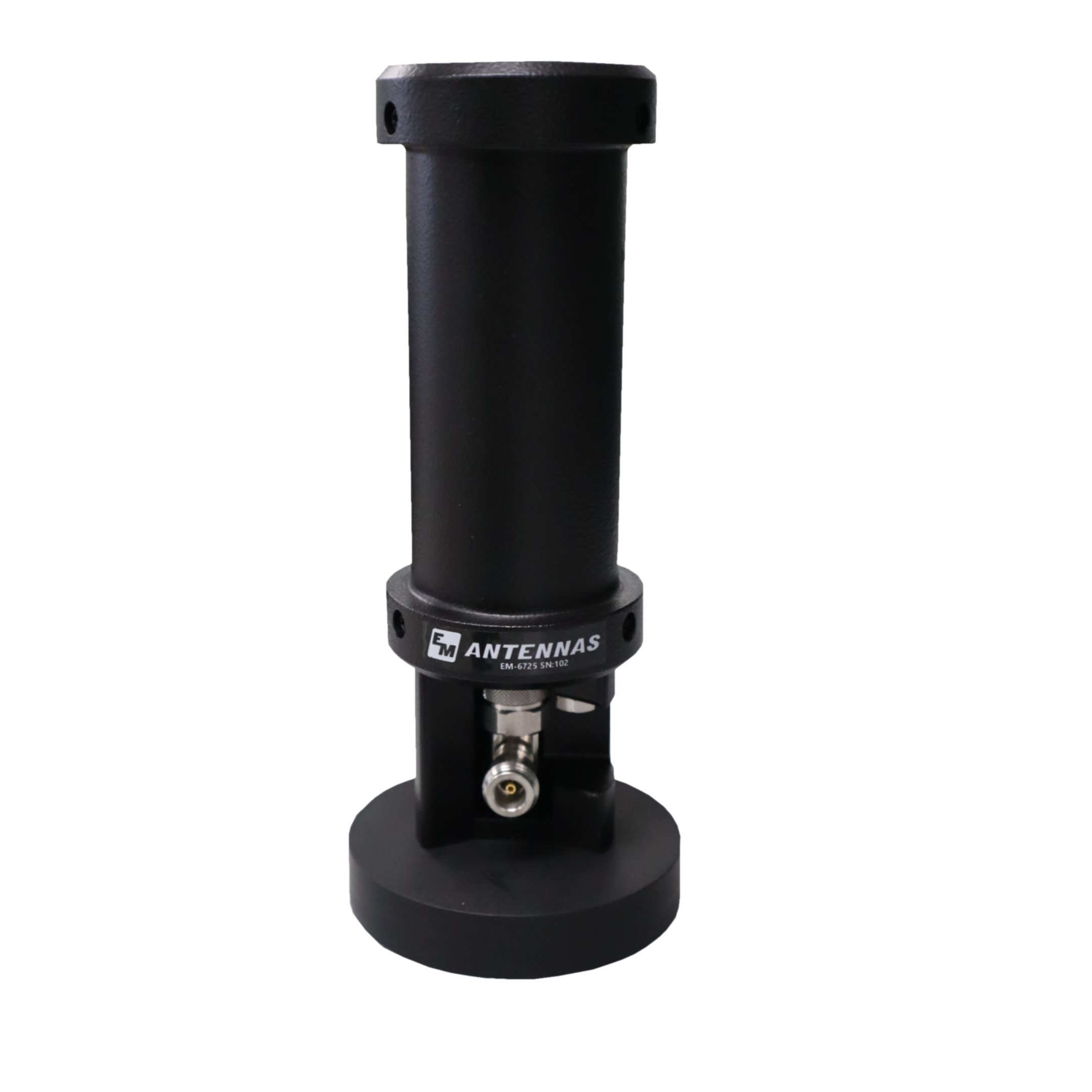

EM-6725, Antenna, Ultra-Wideband, Omni-Directional, Passive | 600MHz-18GHz
The EM-6725 is a small form factor Ultra-Wideband, Omni-directional Antenna with excellent performance across its entire 600MHz – 18GHz frequency range. The EM-6725 features a low VSWR and consistent gain allowing it to be used both as both a transmitting and receiving antenna in the standard US cellular bands.
The EM-6725 comes standard with a detachable magnetic mount allowing for the quick and easy attachment of the EM-6725 to vehicles or can me switched out with a standard tripod.
Mechanical
Dimensions:
Height (Antenna Only): 6.2” (15.8 cm)
Diameter: 2.5” (6.4 cm)
Height (Antenna + Detachable Mount): 9.2” (23.4 cm)
Height (Magnetic Base Only): 0.75” (1.9 cm)
Diameter (Magnetic Base Mount): 4” (10.2 cm)
Mounting Options Available:
¼ -20 Detachable Antenna Mount (Included)
¼ -20 Magnetic Mount (included)
EM-6133 Table-top Tripod (optional)
Color Options:
• Black (default)
• Custom colors available upon request
