Specifications
Diameter: .12 in
Attenuation, Nominal 26.5GHz (dB/ft.): .89
Attenuation, Nominal 50GHz (dB/ft.): 1.26
Minimum Bend Radius Static: .50 in.
Weight: 8 grams
EM-1316A | Cable

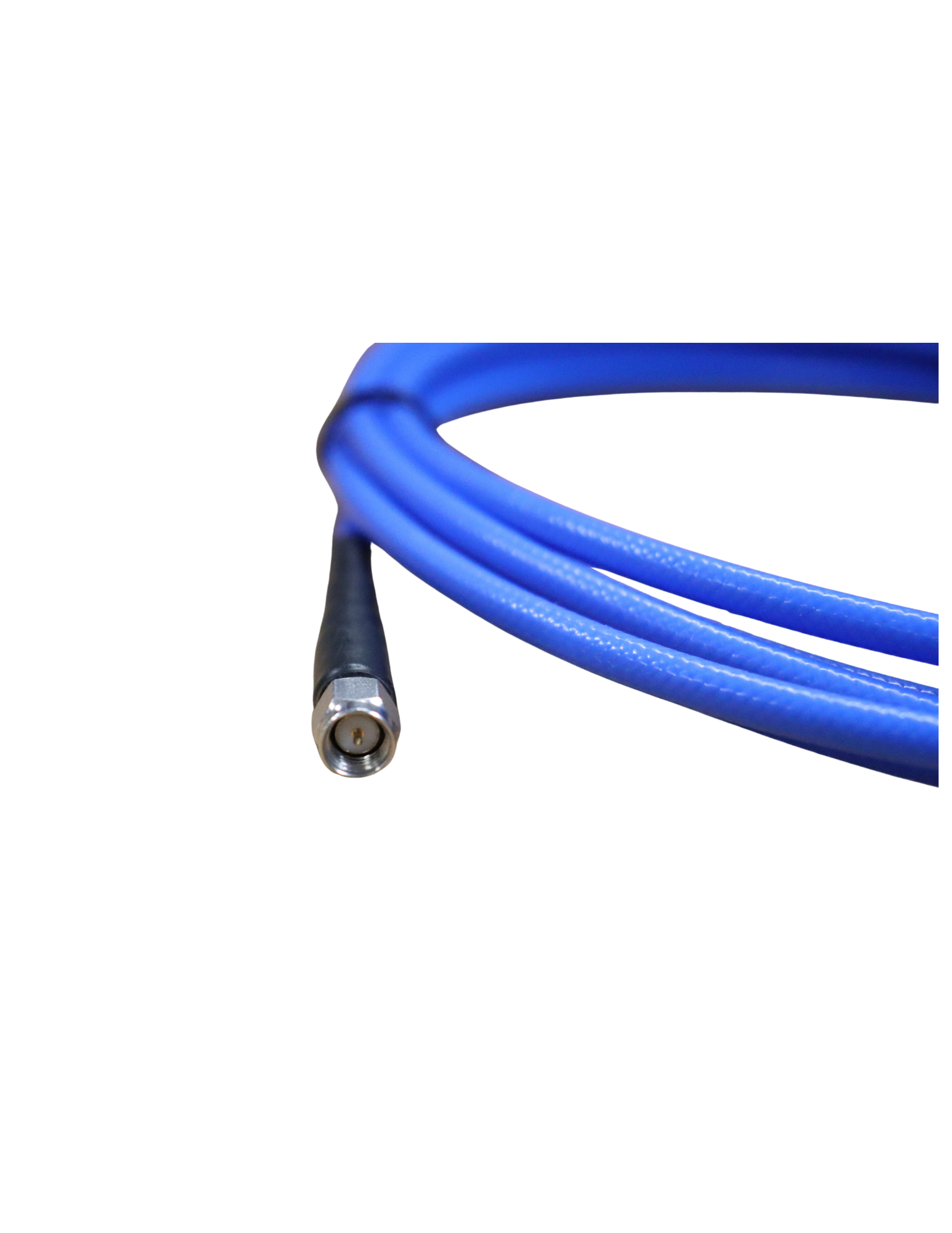

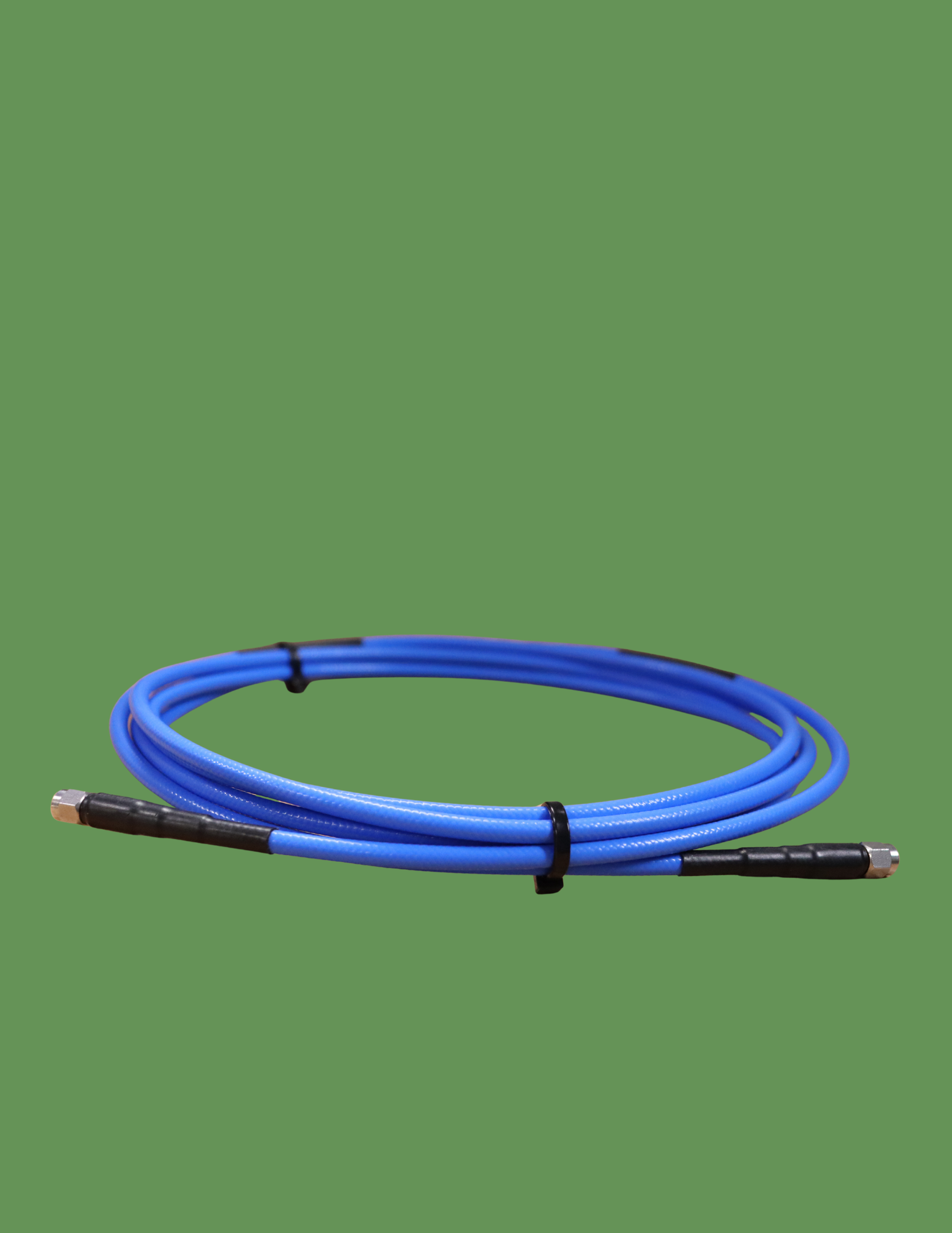

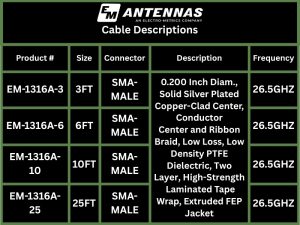

The EM-1316A Series are cables in 6, 10 or 25ft with SMA male to SMA male connectors on both ends. These are low-loss, high-performance, which covers the frequency range from DC to 26.5GHZ. These are ruggedized and armored for durability and stability.
