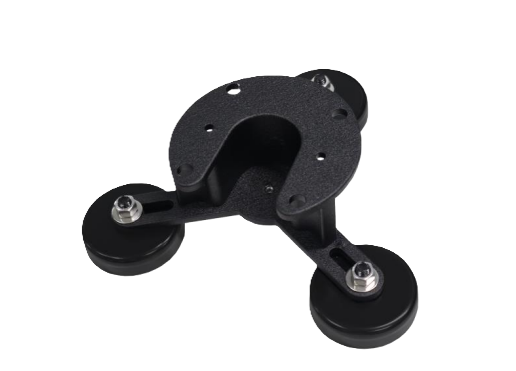

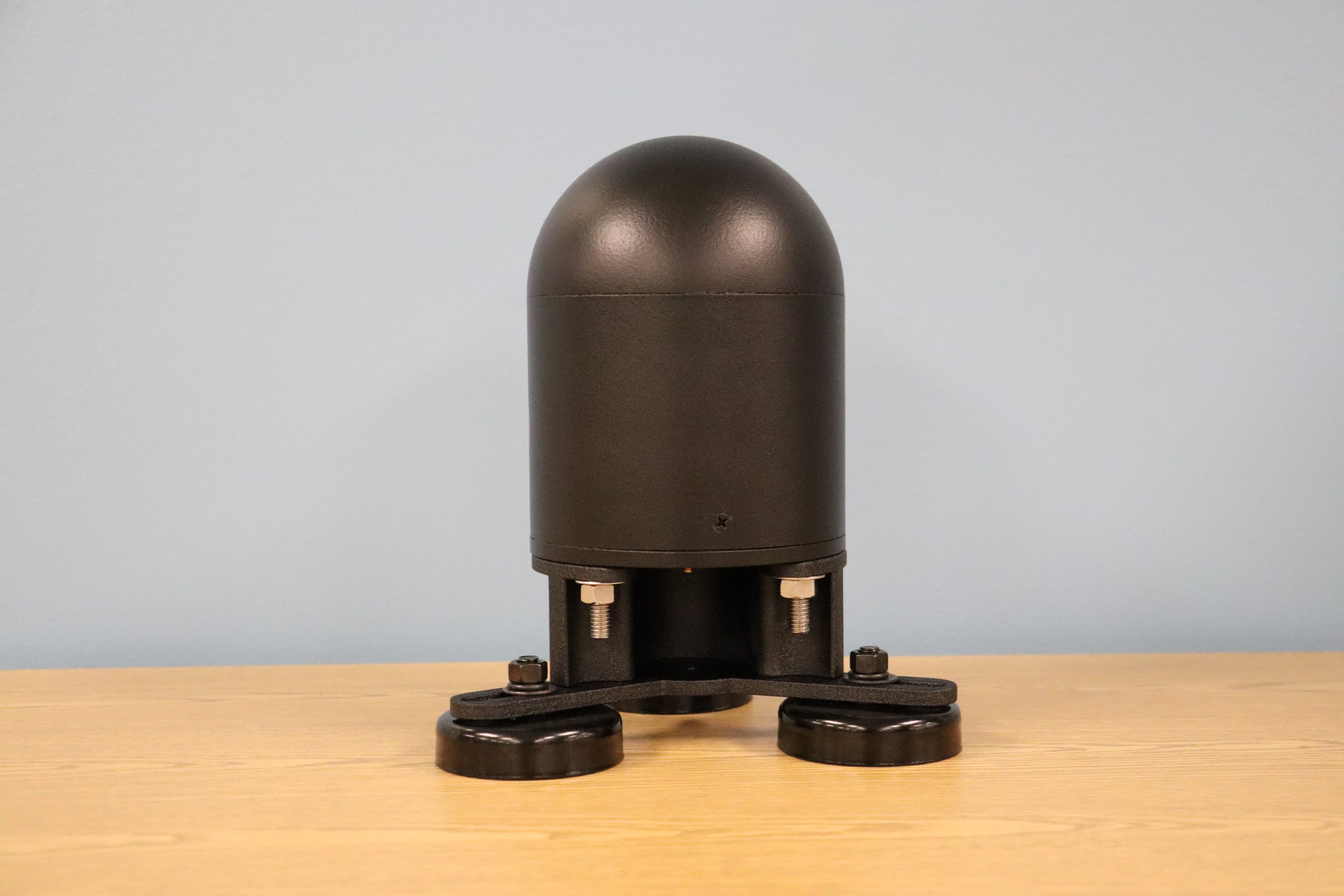

The EM-1234 Magnetic Mount is designed to be a flexible mounting solution for our omnidirectional antennas. The mount can be used
in conjunction with our rugged omni-directional antennas, EM-6841 and EM-6843 or our standard, EM-6856. The EM-1234 can be

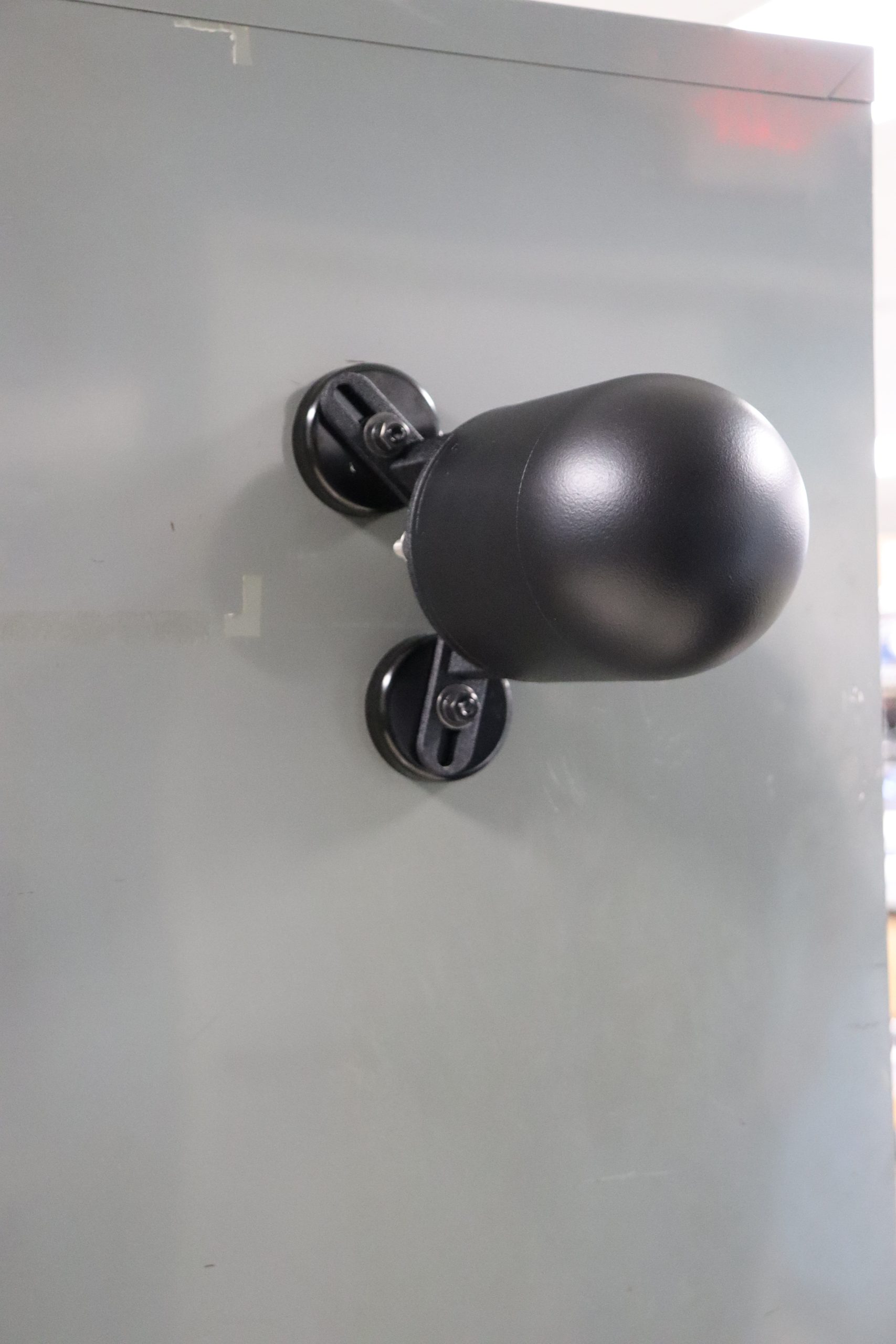

mounted on any metal wall or vehicle roof using three magnetic feet. For flexibility, the EM-1234 can also be mounted onto any
standard ¼-20 tripod stud. EM-1234 requires the use of a right-angle adapter with all antennas.
Dimensions:
Diameter: 11.1”
Height: 3.5”
Weight: 4.5lbs. – 1.25 lbs. without magnets
Magnets: 110 lb. pull force each
Mounting Options Available:
• Mounts to ¼-20 tripod
• Mounts to flat metal surfaces
Antenna Options Available:
• Omni-Directional: EM-6841, 6843, 6854, 6856
• Right-Angle Adapters for N, SMA and K available
upon request
Color Options:
• Black (default)
• Custom colors available upon request
