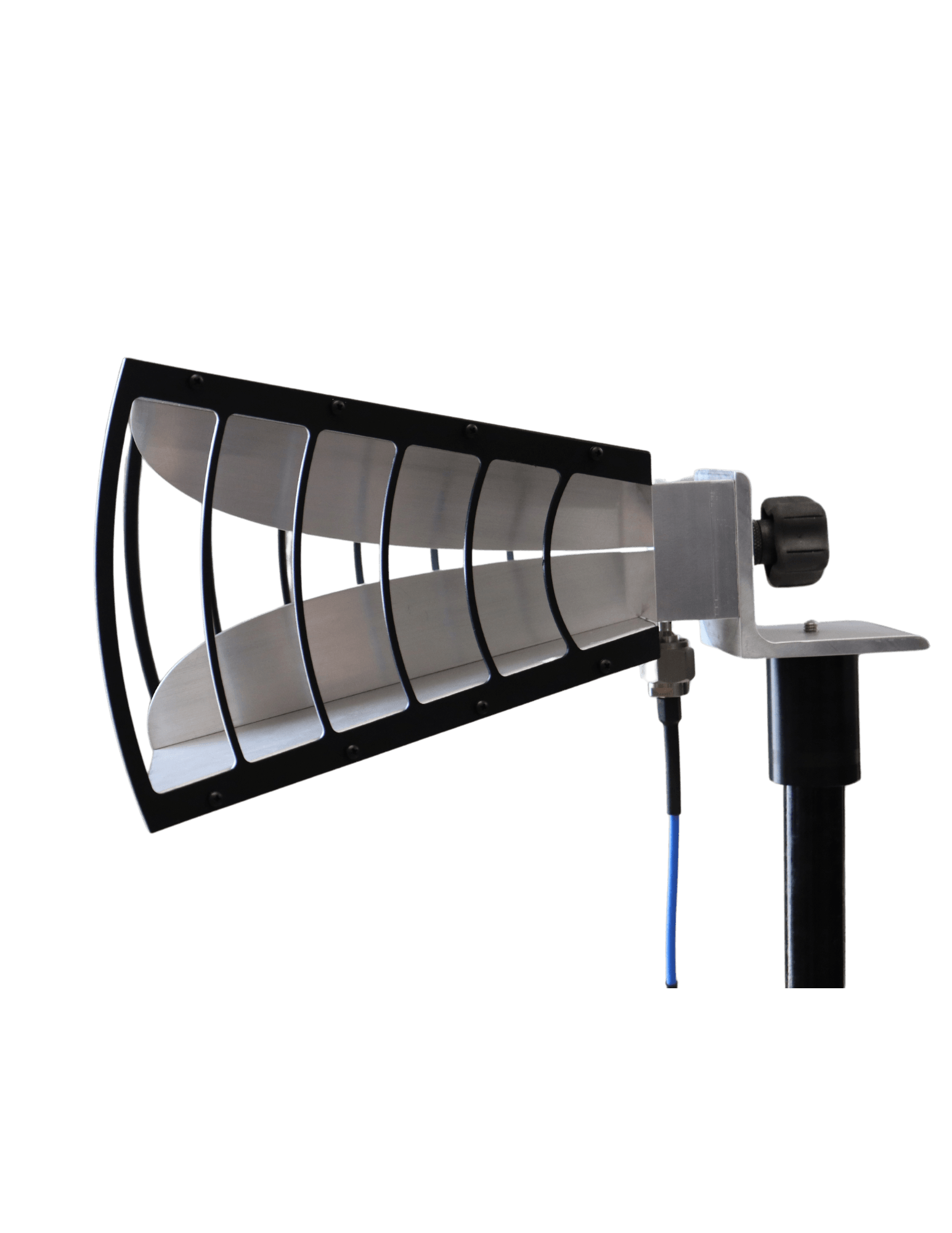

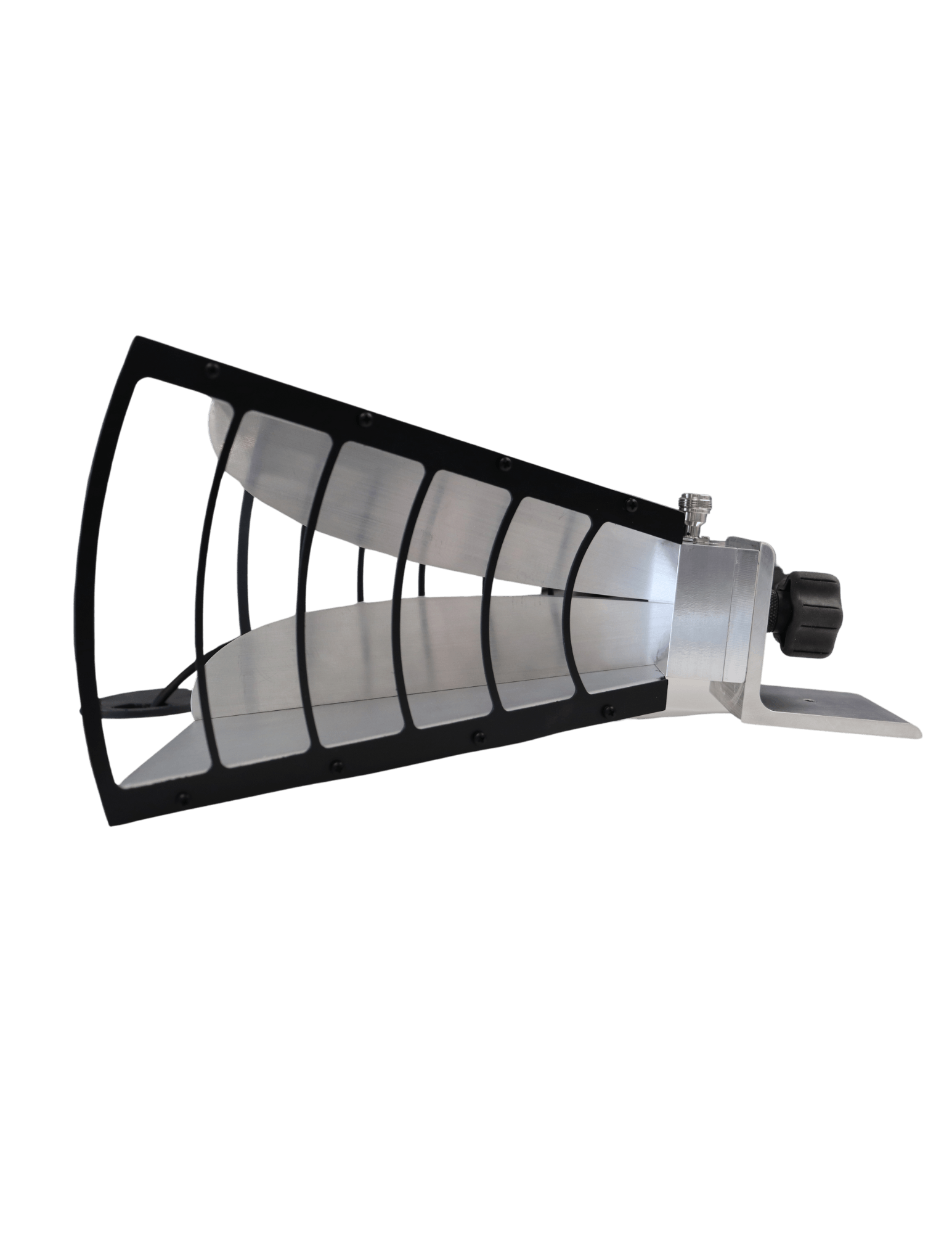

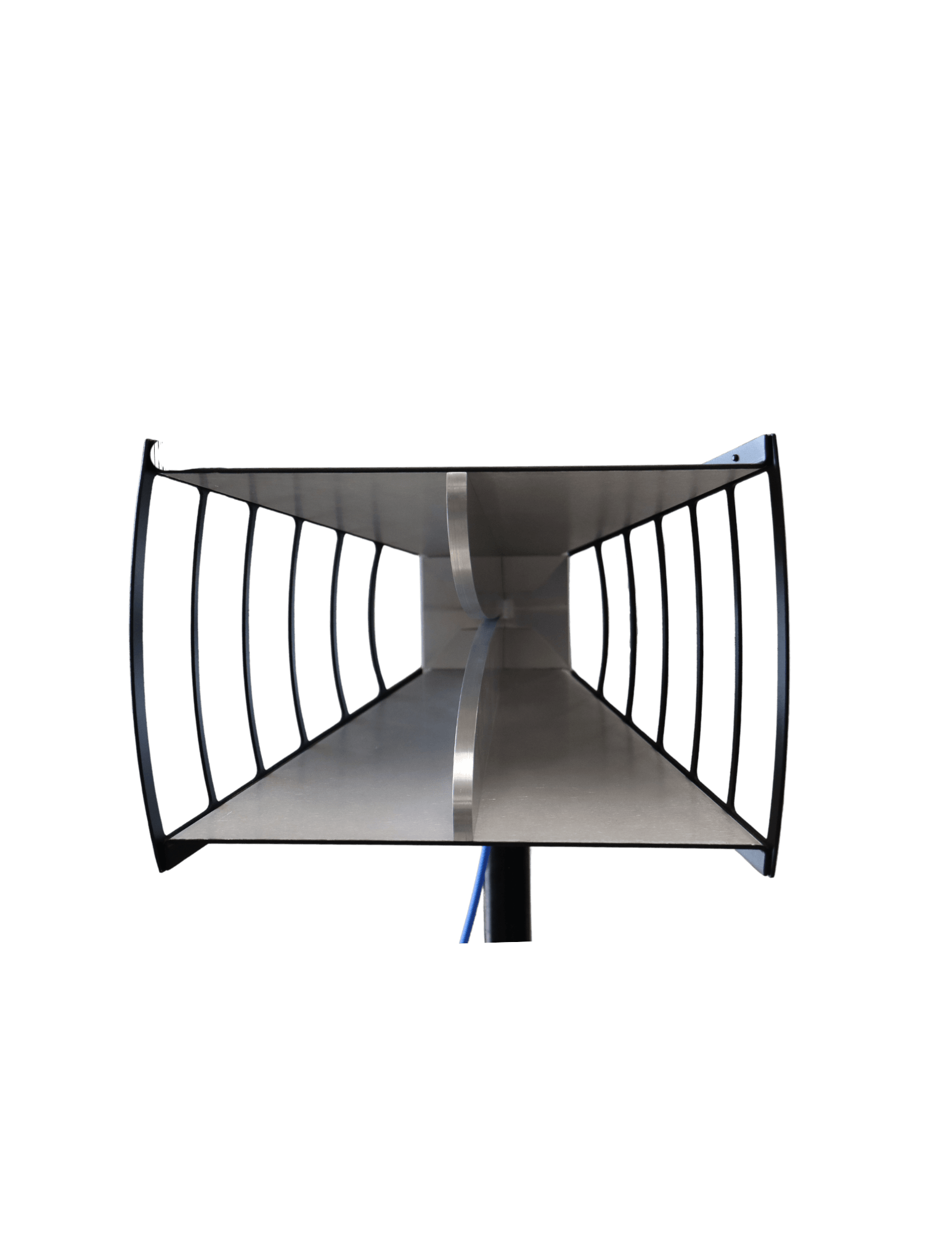

EM-7102 Antenna, Dual Ridged Horn | 1GHz – 18GHz
Categories: Antennas Newly Released Directional Horn
The EM Antennas EM-7102 is a high performance Dual Ridged Horn Antenna designed to cover the L, S, C, X, and Ku bands across the extensive 1-18GHz frequency range. The EM-7102 is ideal for precision measurements, EMC testing, antenna characterization, UWB communications, and spectrum monitoring. The EM-7102 is an updated design featuring the maximum gain…
Details:
The EM Antennas EM-7102 is a high performance Dual Ridged Horn Antenna designed to cover the L, S, C, X, and Ku bands across the extensive 1-18GHz frequency range. The EM-7102 is ideal for precision measurements, EMC testing, antenna characterization, UWB communications, and spectrum monitoring. The EM-7102 is an updated design featuring the maximum gain of the antenna along its boresight without nulls or lobe-splitting. The EM-7102 also features a consistent beamwidth with a low VSWR for improved measurement quality.
Electrical
Frequency Range: 1GHz – 18GHz Calibrated
700MHz-1GHz Uncalibrated
Polarization: Linear, Vertical
VSWR: 1.8:1 Average, 3.5:1 Max
3dB Beamwidth:
80˚ – 20˚ Typical Azimuth
80˚ – 20˚ Typical Elevation
Impedance: 50Ω, Nominal
Gain: 12-15 dBi Typical > 3GHz
6dBi @ 1000MHz
Max Power: 100W
Connector: Type ‘N’ 1GHz-18Ghz
Mechanical
Dimensions:
Length: 23.5cm (9.25 in.)
Width: 24.1cm (9.5 in.)
Height: 17.15cm (6.75in.)
Weight: 1.15kg (2.2 lbs.)
Mounting Options Available: 1/4-20 Mount with 45° detent (included)
Color Options:
Black
Unfinished Aluminum
Custom colors available upon request
