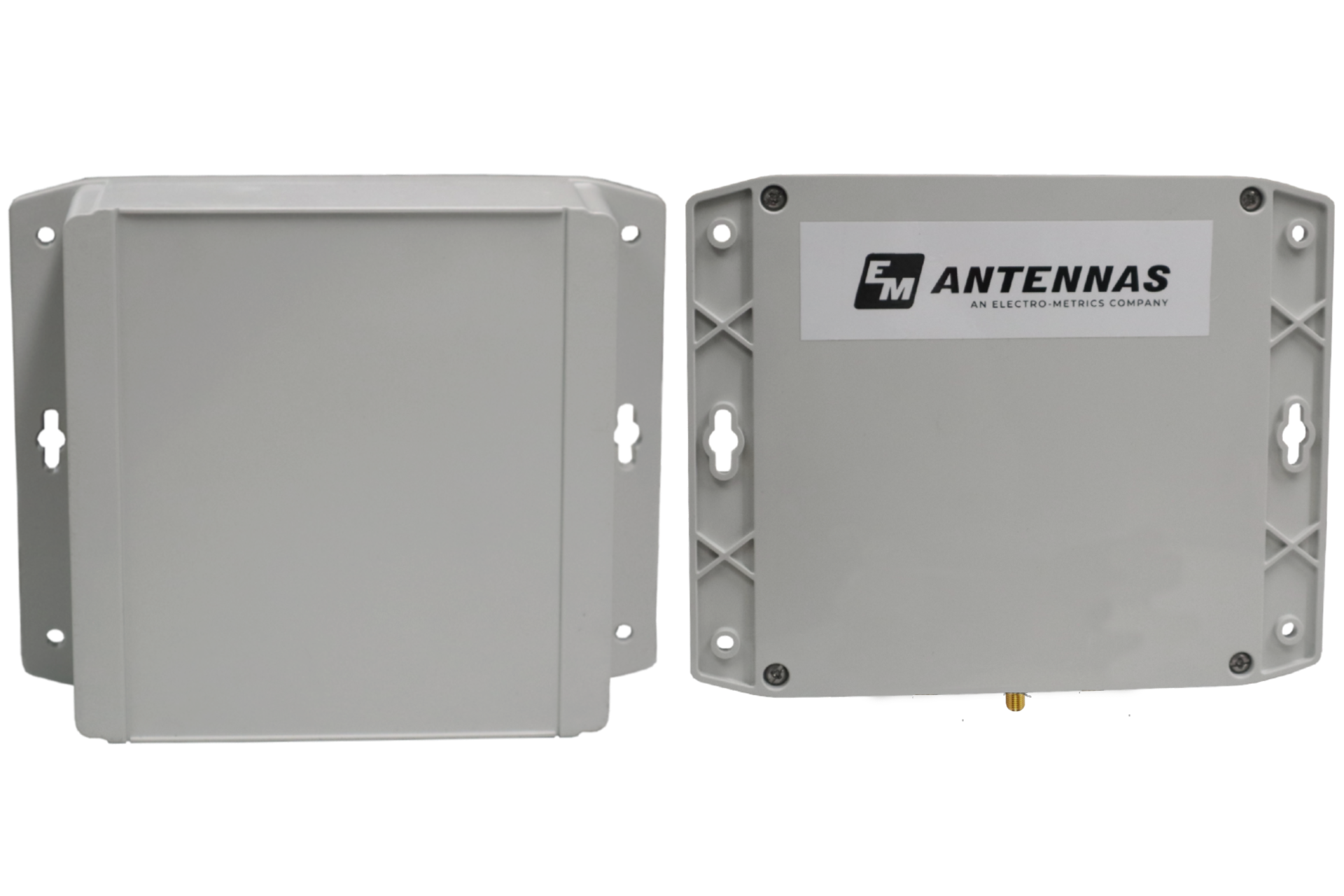

EM-6481 | Antenna, Directional SISO, Vertically Polarized
Categories: Antennas Newly Released Directional MIMO
The EM-6481 is a compact, directional 1×1 SISO antenna covering 4.4–5.2 GHz, designed for reliable, high-performance wireless connectivity. Supporting MANET radios, Wi-Fi, and cellular frequency bands, it delivers improved throughput, extended range, and enhanced link quality across tactical and commercial applications.
Details:
The EM-6481 is a compact, directional 1×1 SISO antenna covering 4.4–5.2 GHz, designed for reliable, high-performance wireless connectivity. Supporting MANET radios, Wi-Fi, and cellular frequency bands, it delivers improved throughput, extended range, and enhanced link quality across tactical and commercial applications.
Electrical
Frequency Range: 4.4GHz – 5.2GHz
Polarization: Vertical
VSWR: 2:1 Max, <1.5:1 Average
3dB Beamwidth:
-Azimuth 60° Typical
-Elevation 60° Typical
Impedance: 50Ω, Nominal
Gain: 9dBi Typical
Max Power: 10W CW
Connector: TNC Female (EM-6481 | 4.4-5.2GHz)
Type ‘N’ Female (EM-6481-1 | 4.4-5.2GHz)
SMA Female (EM-6481-2 | 4.4-5.2GHz)
Mechanical
Dimensions:
Height: 6.25 in. (15.9 cm)
Width: 8.0 in. (20.3 cm)
Depth: 2.5 in. (6.4 cm)
Weight: 1.2 lbs. (0.55 kg)
