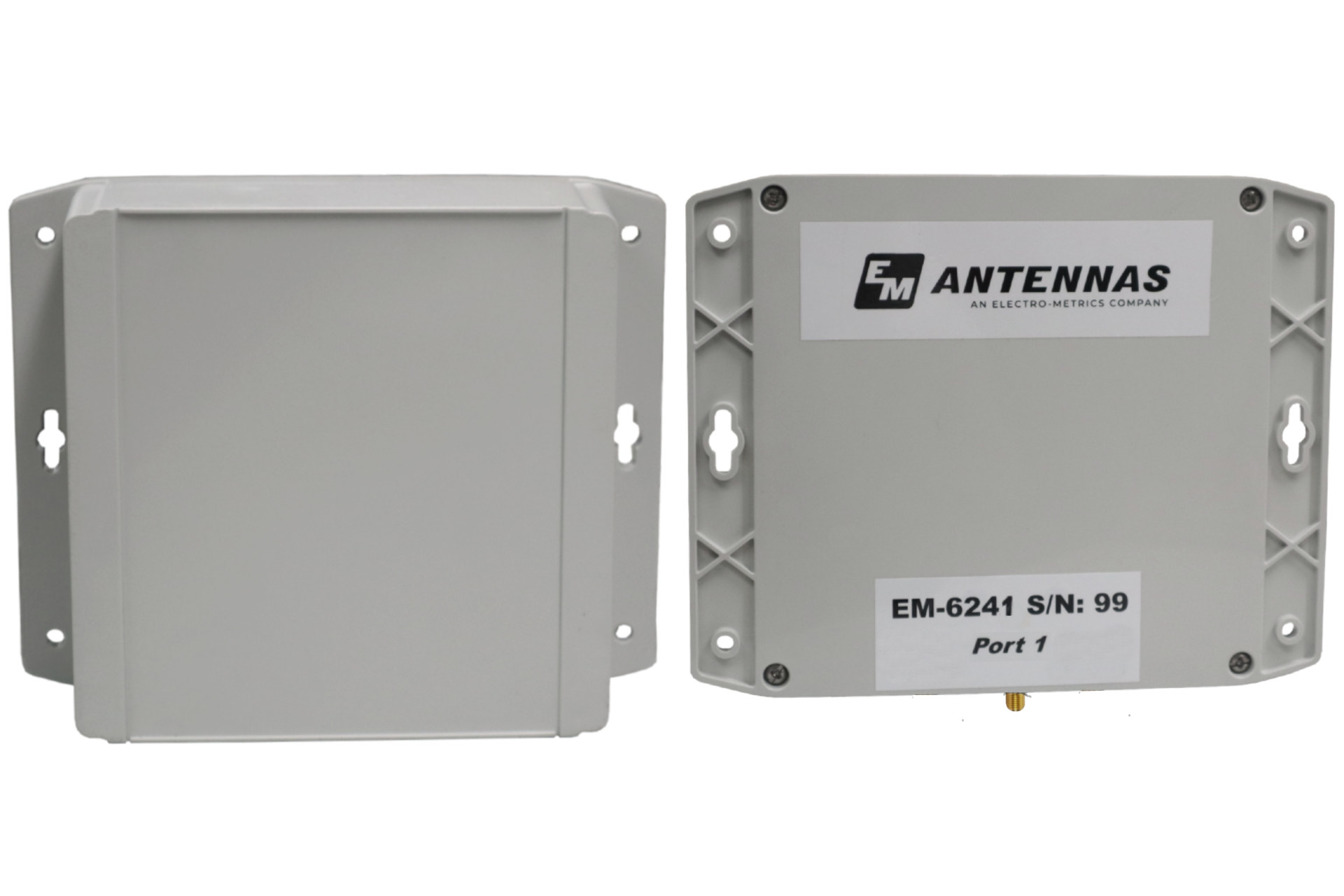

EM-6241 | Antenna, Directional SISO, Vertically Polarized
Categories: Antennas Newly Released Directional MIMO
The EM-6241 is a compact, directional 1×1 SISO antenna covering 1.6–2.7 GHz, designed for reliable, high-performance wireless connectivity. Supporting MANET radios, Wi-Fi, and cellular frequency bands, it delivers improved throughput, extended range, and enhanced link quality across tactical and commercial applications.
Details:
The EM-6241 is a compact, directional 1×1 SISO antenna covering 1.6–2.7 GHz, designed for reliable, high-performance wireless connectivity. Supporting MANET radios, Wi-Fi, and cellular frequency bands, it delivers improved throughput, extended range, and enhanced link quality across tactical and commercial applications.
Electrical
Frequency Range: 1.6GHz – 2.7GHz
Polarization: Vertical
VSWR:
2:1 Max
<1.5:1 Average
3dB Beamwidth:
-Azimuth 70° Typical
-Elevation 60° Typical
Impedance: 50Ω, Nominal
Gain: 8dBi Typical
Max Power: 15W CW
Connector: TNC Female (EM-6241 | 1.6-2.7GHz)
Type ‘N’ Female (EM-6241-1 | 1.6-2.7GHz)
SMA Female (EM-6241-2 | 1.6-2.7GHz)
Mechanical
Dimensions:
Height: 6.25 in. (15.9 cm)
Width: 8.0 in. (20.3 cm)
Depth: 2.5 in. (6.4 cm)
Weight: 1.2 lbs. (0.55 kg)
