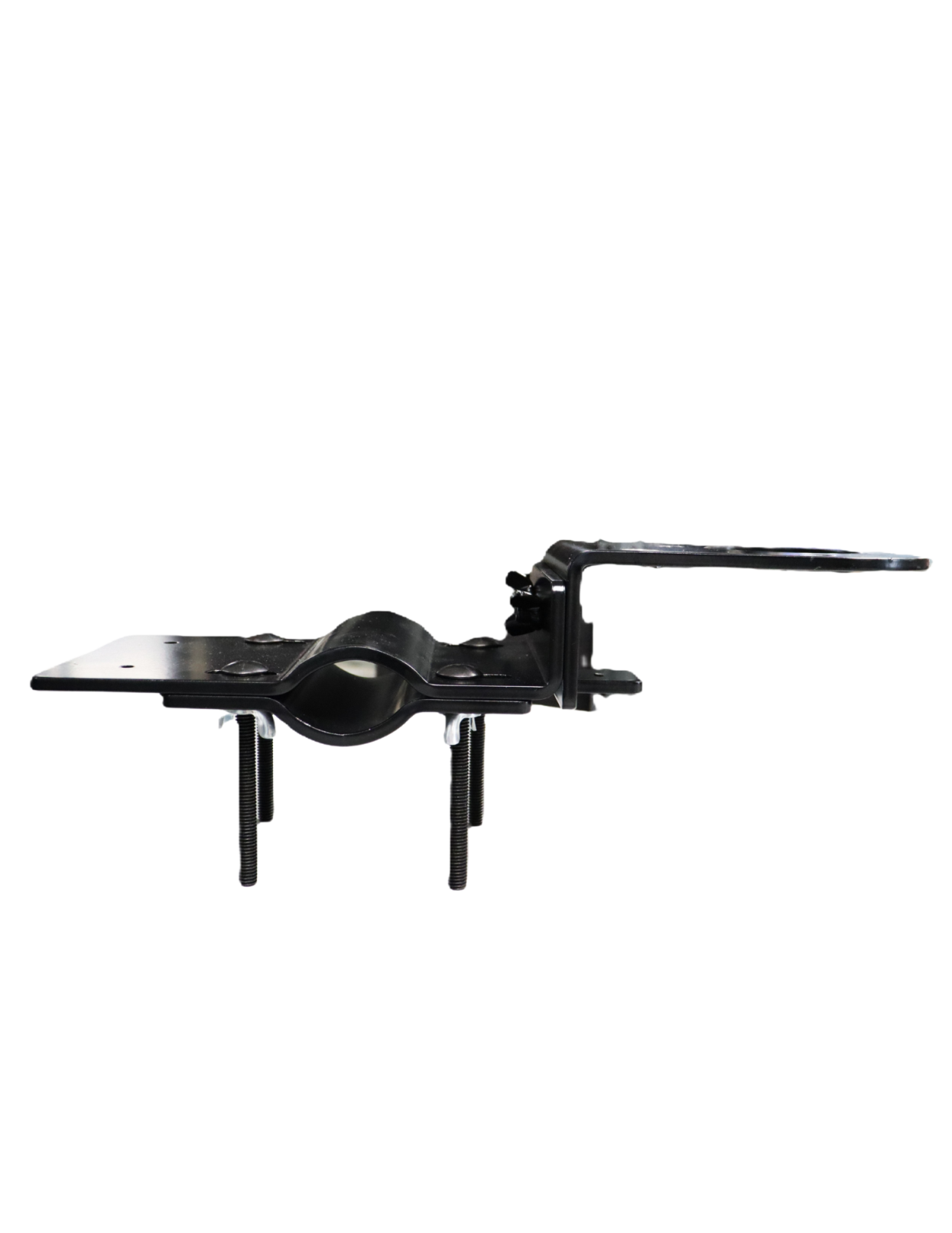

EM-1612 | Multi-Mount

The EM-1612 Multi-Mount is designed to be an all-in-one mounting solution for our rugged omni-directional antennas: EM-6841, EM-6843 and EM-6854, and whip antennas: EM-6500 and EM-6501. The mount can be applied to a standard ¼-20 tripod stud. The mount can also be mounted to any metal wall or vehicle roof using magnetic feet. Lastly, the mount can clamp onto a typical 2-3” pole. When using a pole, the mount itself can pivot 90 degrees to allow for vertical or horizontal mounting of the antennas.

Category:

Mechanical

Dimensions:
Length: 16.5”
Width: 5.5” – 6.75”
Height: 3.3” – 6”
Mounting Options Available:
• Mounts to ¼-20 tripod
• Magnets supplied for mounting to metal surfaces
• Clamps to 2-3” pole
Antenna Solutions:
• Omni-Directional: EM-6841, 6843
• Whip Antenna: EM-6500, 6501
Color Options:
• Black (default)
• Custom colors available upon request

Data Sheet

EM-1612 Data Sheet

EM-1612 Contents and Pictures
