1.6 MHz – 30 MHz
Rugged Long Wire Omni-Directional Antenna
EM-6844

The EM-6844 Long Wire Antenna offers excellent coverage across its wide frequency range of 1.6MHz to 30MHz. With its rugged and easily deployable package, the EM-6844 is ideal for IPMS and SIGINT for long-wave radio frequencies.

Data Sheet

Details:

The EM-6844 Long Wire Antenna offers excellent coverage across its wide frequency range of 1.6MHz to 30MHz. With its rugged and easily deployable package, the EM-6844 is ideal for IPMS and SIGINT for long-wave radio frequencies.

Electrical

Frequency Range: 1.6 MHz – 30 MHz
Coverage: Short Range: 0 km – 150 km
Medium Range: 150 km – 800 km
Long Range: > 800 km
Impedance: 50Ω, Nominal
Power: 150 Watts Continuous, 400 Watts Peak

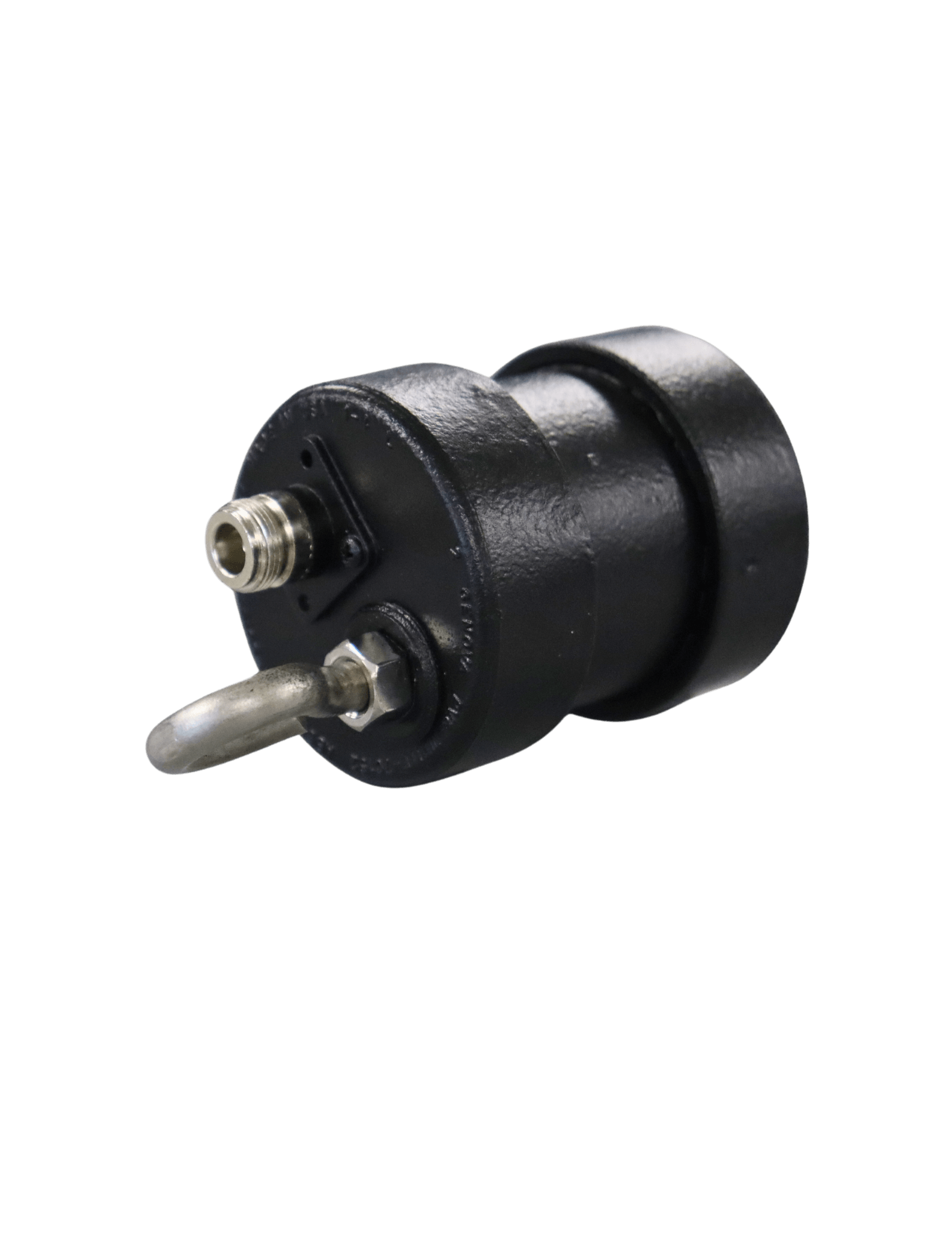

Connector: Type ‘N’ (female)

Mechanical

Wire Dimensions:
Length: 60’ (18.3 m)
Diameter: 12 Gauge (0.08”)

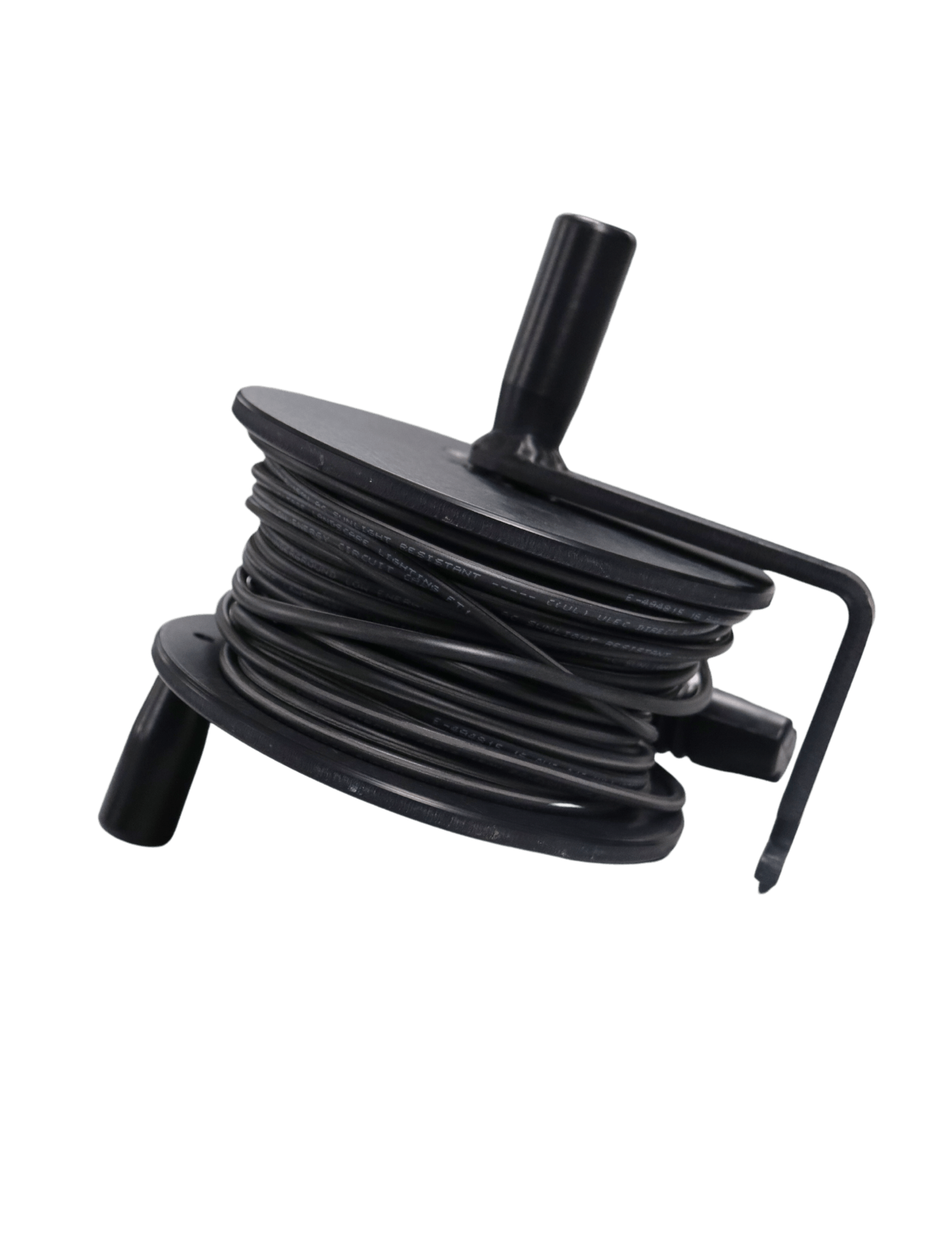

Spool Dimensions:
Length: 7” (17.8 cm)
Diameter: 6” (15.2 cm)

Weight: 5 lbs. (2.27 kg)
