1 GHz – 40 GHz
Antenna Horn Kit
EM-7100
Categories: Directional Kits Kits

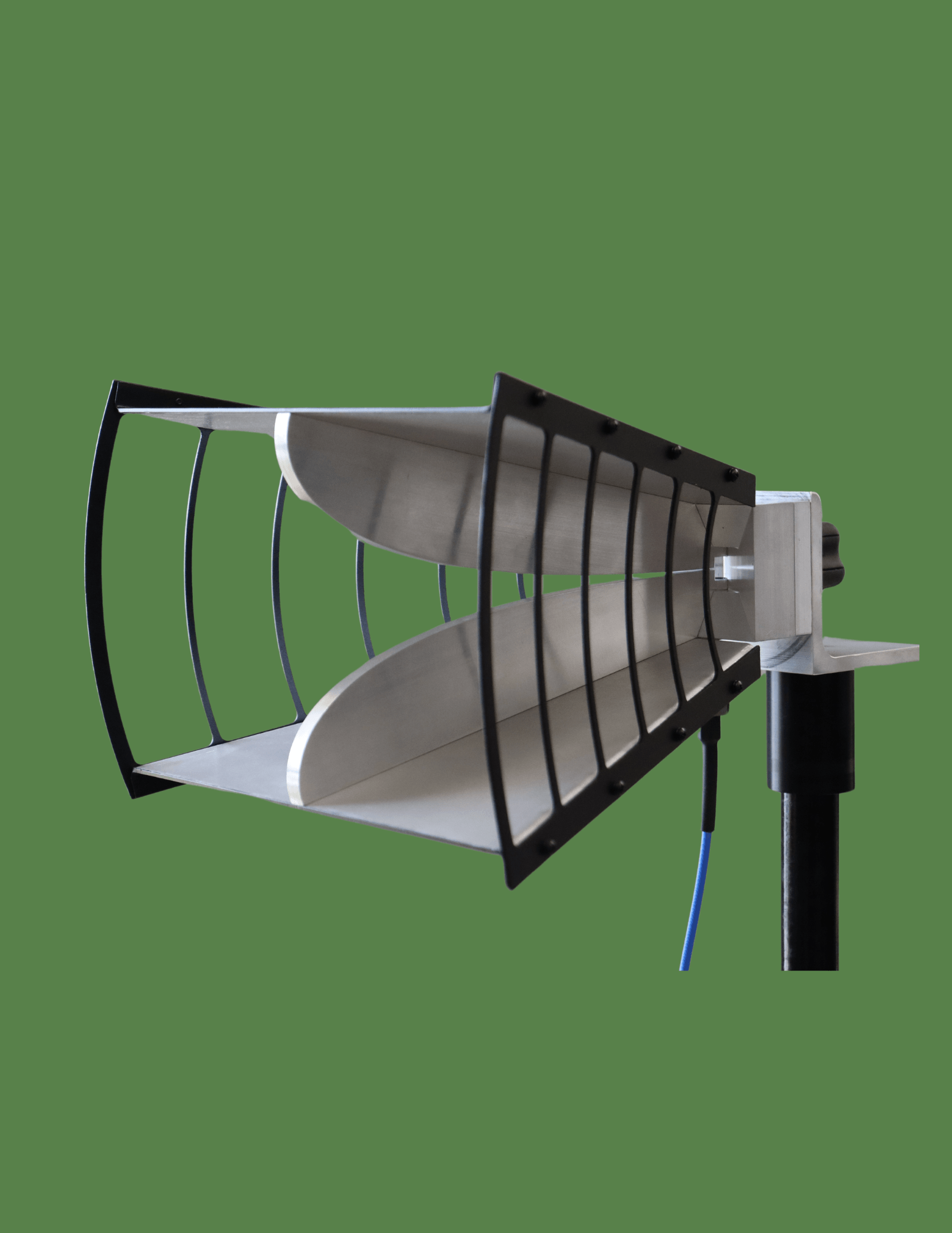

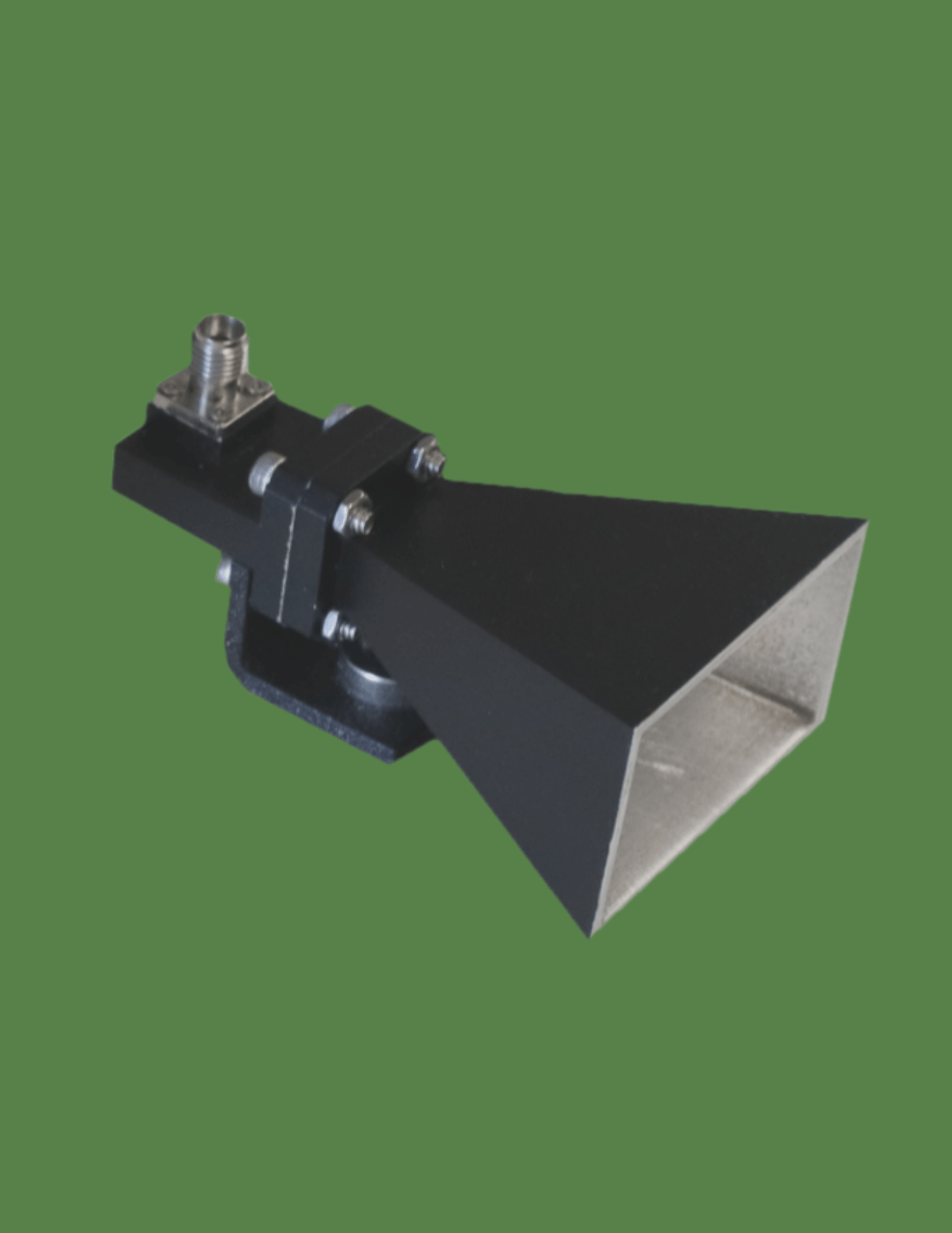

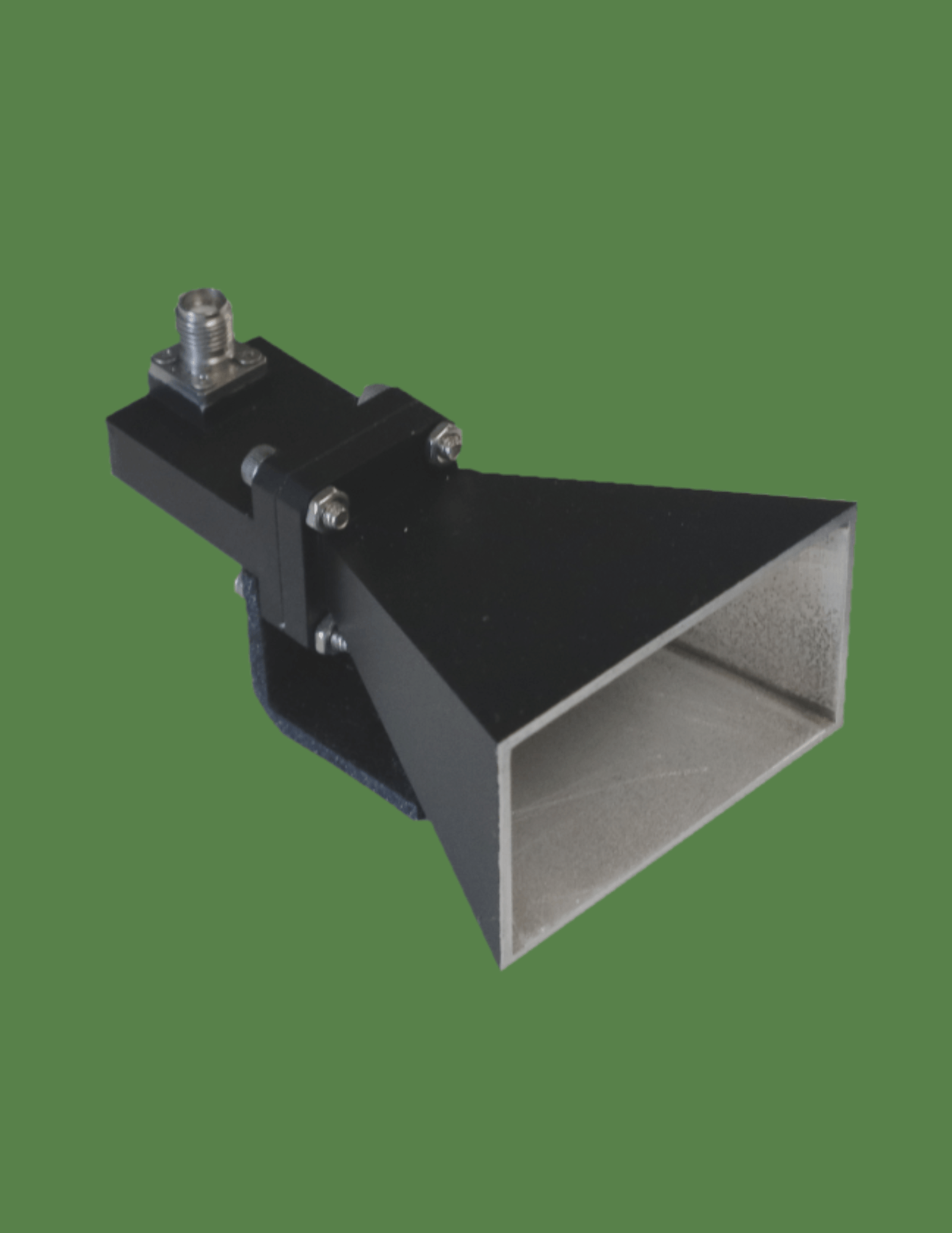

The EM-7100 horn antenna kit features the EM-7102 (1GHz-18GHz | Dual Ridge Horn), the EM-7103 (18GHz-26.5GHz | Standard Gain Horn) and the EM-7104 (26.5GHz-40GHz | Standard Gain Horn) antennas covering the frequency range of 1GHz to 40GHz. Each EM-7100 Horn Kit includes individual calibration data for Gain and Antenna Factor at 1m for each antenna.…
Details:
The EM-7100 horn antenna kit features the EM-7102 (1GHz-18GHz | Dual Ridge Horn), the EM-7103 (18GHz-26.5GHz | Standard Gain Horn) and the EM-7104 (26.5GHz-40GHz | Standard Gain Horn) antennas covering the frequency range of 1GHz to 40GHz. Each EM-7100 Horn Kit includes individual calibration data for Gain and Antenna Factor at 1m for each antenna. Each kit also includes a rugged case with custom cut foam.
Electrical
Kit Frequency Range: 1GHz – 40GHz
Polarization: Linear, Vertical
Impedance: 50Ω, Nominal
Mechanical
EM-7102 Dimensions:
Length: 9.25 in. (23.5 cm)
Width: 9.5 in. (24.1 cm)
Height: 6.75 in. (17.15 cm)
Weight: 2.2 lbs. (1.15 kg)
EM-7103 Dimensions:
Length: 3.03 in. (7.7cm)
Width: 2.05 in. (5.2cm)
Height: 1.26 in. (3.2cm)
Weight: 0.13 lbs. (60g
EM-7104 Dimensions:
Overall Length: 2.8” (7.2 cm)
Width: 0.7” (4.3 cm)
Height: 1.2” (2.7 cm)
Weight: 0.10 lbs. (45g)
