100 Hz – 1 GHz
Receiver, Non-Tunable

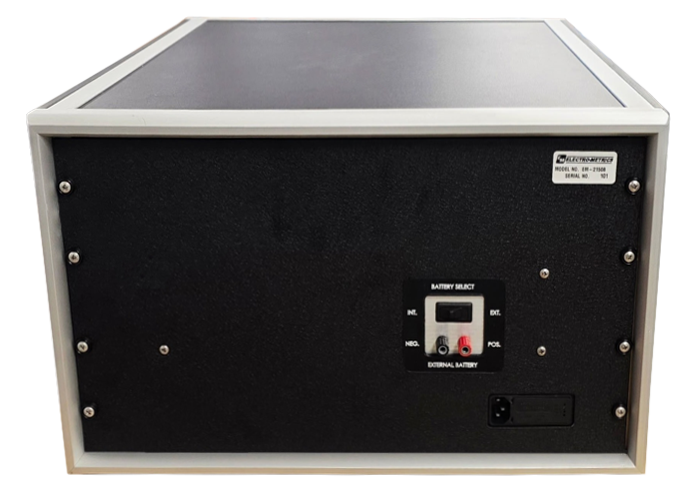

EM-2150B

The EM-2150B TEMPEST Test Receiver is designed to meet the specifications and requirements established by NACSIM 5100A for non-tunable tests from 100 Hz to 1 GHz. The 2150B design uses a series of externally connected discrete components and assemblies comprising RF amplifiers, variable electronic filters, and a series of passive high/low-pass filter networks to…

Data Sheet

Details:

The EM-2150B TEMPEST Test Receiver is designed to meet the specifications and requirements established by NACSIM 5100A for non-tunable tests from 100 Hz to 1 GHz. The 2150B design uses a series of externally connected discrete components and assemblies comprising RF amplifiers, variable electronic filters, and a series of passive high/low-pass filter networks to set the required test configuration.

Electrical

Frequency Range: 100 Hz – 1 GHz

Typical VSWR: 1.3:1 below 400 MHz 2:1 Maximum

Gain: 100 dB gain (all combinations of pre-gain, post-gain, and inter-gain filtering)

Noise Figure: 40-96 dB of low-noise gain in increments of 20-40 dB

Impedance: 50 Ohms

Input Impedance: 0 Ohms

Sensitivity: LNA’s used to outperform Federal Standard testing sensitivities.

Mechanical

Depth: 26 in. (66.04 cm)

Width: 20.5 in. (52.07 cm)

Height: 11.75 in. (29.85 cm)

Weight:42 lbs. (19 kg)

Color Options: Black (Std) Custom Paint Available

Included Accessories: 1 – Twinax to BNC Adapter
1 – BNC Input coaxial cable
1 – BNC Output coaxial cable
10 – BNC Interconnection coaxial cables, variable length
